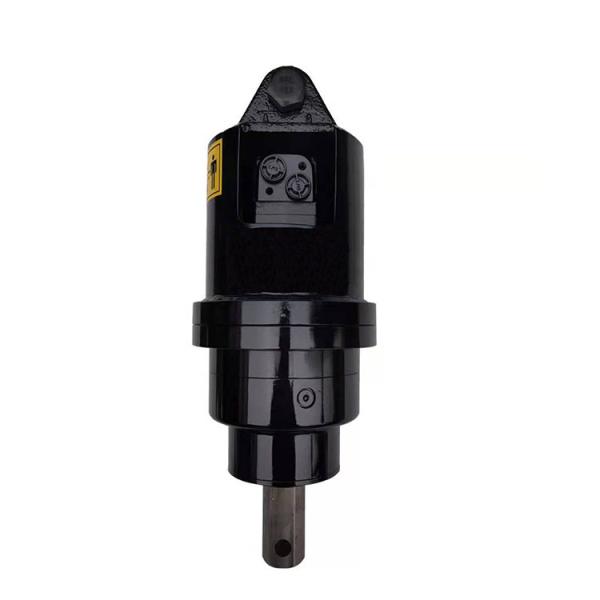

YAKAI 2000Nm Earth Auger For 1.5 - 3 Tons Carriers
Earth Auger Attachments
The Excavator earth auger is composed of a drive unit, a drilling
rod with teeth on it, and a connection frame. After connecting the
pipeline to the excavator, the excavator hydraulic system offers
its power to the earth auger. The motor which connects with the
drilling rod starts to work. YAKAI excavator earth auger is famous
for its flexibility and effective drilling ability. It mainly
applies: to drilling hoes for the electric posts, tree planting,
photovoltaic pilots, etc.
If you want to increase drilling work effectiveness, the excavator
augers produced by YAKAI would be your first choice.
Earth Auger Specification
| Auger Model | 2000 | 3000 | 4500 | 6000 | 8000 | 10000 | 15000 | 20000 | 25000 | 50000 |
| Suitable Carrier Weight | 1.5-3T | 2-4T | 3-5T | 4-6T | 6-8T | 6-10T | 10-15T | 15-20T | 15-25T | 20T-35T |
| Torque(MAX) | 2000Nm | 3000Nm | 4500Nm | 6000Nm | 8000Nm | 9000Nm | 15000Nm | 20000Nm | 25000Nm | 50000Nm |
| Working Pressure | 60-240Bar | 70-240Bar | 70-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-240Bar | 80-310Bar | 80-360Bar |
| Flow | 20-70Lpm | 25-70Lpm | 20-80Lpm | 50-85Lpm | 50-85Lpm | 50-125Lpm | 60-180Lpm | 75-220Lpm | 75-280Lpm | 75-320Lpm |
| Output Shaft(mm) | OD65,Hex35 | OD65,Hex51 | OD65,Hex51 | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 75 Square | 110 Square |
| Machine Diameter | 190mm | 232mm | 238mm | 245mm | 272mm | 280mm | 338mm | 345mm | 355mm | 420mm |
| Rotating Speed (Max) | 65r/min | 60r/min | 56r/min | 50r/min | 48r/min | 45r/min | 38r/min | 35r/min | 28r/min | 20r/min |
| Machine Weight | 28kg | 74kg | 95kg | 134kg | 160kg | 168kg | 240kg | 272kg | 320kg | 540kg |
| Drilling Diameter(mm) | 100-400 | 100-600 | 100-700 | 100-700 | 100-900 | 100-1000 | 200-1500 | 200-1500 | 300-1800 | 300-1800 |
* For other diameters and lengths, we can customize service,
OEM/ODM
* The Parameter above may change with the technology improvement,
will not notice additionally, please understand.
Customize Your Own Earth Auger Based on Your Work Condition
| Earth Auger Drill Extension Rod |
| Diameter | Length |
| φ89 mm | 1500 mm |
| φ108 mm |
| φ146 mm |
* For other diameters and lengths, we can customize service,
OEM/ODM
| Optional Diameter |
| φ150 | φ200 | φ250 | φ300 | φ400 | φ500 | φ600 | φ700 | φ800 | φ900 | φ1000 | φ1200 |
*standard earth auger bits are 1.5 meters in length, diameter is 1
meter
Earth Auger Application
Applied to multiple constructions:
- High-speed rail catenary support
- Slope protection pile
- Solar photovoltaic power station
- Foundation support frame
- Power grid reconstruction
- Civil construction
- New rural city construction
- Municipal construction project
- Landscaping and other projects
DaYan.HB Earth Auger Features
- Output shafts are available in OD65 / Hex51 / Hex35 / 75 Square /
110 Square
- Can work with brackets on excavator and without brackets on
excavator
- Offer OEM couplers fit in Skid Steer Loader, Excavator, Backhoe
Loader, and many other Carriers
- Quality Motor Offers Higher Torque Power, Drilling Different Type
Soil
- Hitch anti-swing frame
- Manganese Steel Drill Rod, anti-rust, and high hardness steel make
the auger more stable.
How to Tell If the Soil Can Use Excavator Earth Auger to Drill a
Hole?
If there are pebbles in the soil, it will not affect the drilling,
because the screw blade can rotate it out of the soil surface, and
if the content of soil in the sandy layer is more than 35%, the
drilling can be done. If there are broken bricks in the soil, they
can be drilled out completely, or crushed by the drill teeth in
front of the screw blades. If it is a sand layer, the soil content
greater than 35% will not affect the drilling work.
